Functional

List 47 Example of a functional type condition definition
1<Item name="discharge" caption="Discharge time series">
2  <Definition valueType="functional" >
3    <Parameter valueType="real" caption="Time" />
4    <Value valueType="real" caption="Discharge" />
5  </Definition>
6</Item>
../_images/widget_example_func.png

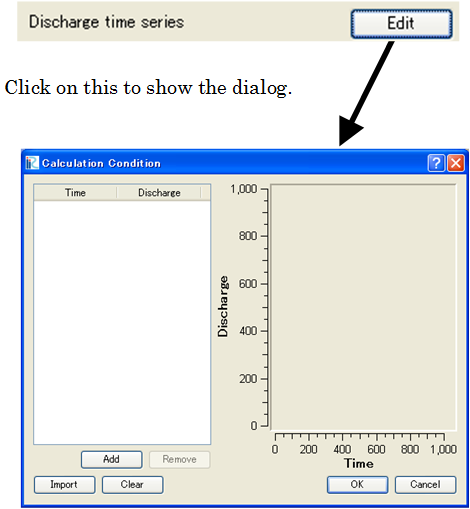

Figure 56 Widget example of a functional type condition

List 48 Code example to functional type condition (for calculation conditions and grid generating conditions)
 1integer:: ier, discharge_size
 2double precision, dimension(:), allocatable:: discharge_time, discharge_value
 3
 4! Read size
 5call cg_iric_read_functionalsize_f("discharge", discharge_size, ier)
 6! Allocate memory
 7allocate(discharge_time(discharge_size))
 8allocate(discharge_value(discharge_size))
 9! Load values into the allocated memory
10call cg_iric_read_functional_f("discharge", discharge_time, discharge_value, ier)
List 49 Code example to functional type condition (for boundary conditions)
 1integer:: ier, discharge_size
 2double precision, dimension(:), allocatable:: discharge_time, discharge_value
 3
 4! Read size
 5call cg_iric_read_bc_functionalsize_f("inflow", 1, "discharge", discharge_size, ier)
 6! Allocate memory
 7allocate(discharge_time(discharge_size))
 8allocate(discharge_value(discharge_size))
 9! Load values into the allocated memory
10call cg_iric_read_bc_functional_f("inflow", 1, "discharge", discharge_time, discharge_value, ier)
